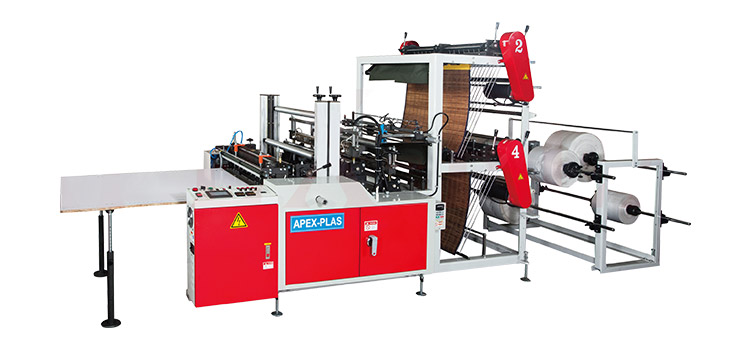

全自動底封袋/背心袋製袋機 AP-800B4
Model AP-800B4 AP-1000B4
Bag Size 4 line 8 line 4 line 8 line
Bag Size-Line*Layer*W*L Max.
2×2×385×1200		 Max.
4×2×2250×1200		 Max.
2×2×385×1200		 Max.
4×2×2250×1200
Bag Size-
Total film Thickness		 0.008~0.2
Capacity
pcs/min*line		 30~140×4 30~120×8 30~140×4 30~120×8
Main motor/
servo motor/feed motor/Heater		 1 HP with gear / AC 2~3 KW*1/
DC 500W*2 / 2.2KW*2		 1 HP with gear / AC 2~3 KW*1/
DC 500W*2 / 2.4KW*2
Power Require /
Air Require		 3 phase 7.0KW / 0.4Mpa(4kg)
and 150L/min		 3 phase 7.4KW / 0.4Mpa(4kg)
and 150L/min
Machine size /
Weight(kg)		 Length 4.0m Width 1.53m Height 2.0m/
NW.1200kg GW.1350kg		 Length 4.0m Width 1.73m Height 2.0m/
NW.1300kg GW.1450kg
Remark 8 lines meed
add optional device
( 請點擊圖片放大 )
